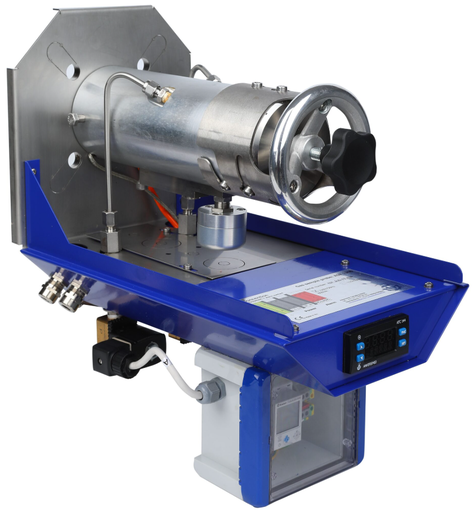

Operating temperature 200°C,
With ceramic element AUF 015, length: 150mm, porosity: 2µm.
With electrically heated filter and retractable inner probe body (to exchange sample tube/pre-filter without demounting the probe).
Temperature controller with high/low temperature alarm (combined).
Temperature sensor: Pt100.
Process connection: DN65 PN6
Sample inlet: G 3/4"f, outlet: 1/4"f NPT.
Including weather protection shield.
Materials: SS316, FKM, ceramics.
Power: 230VAC, 800W

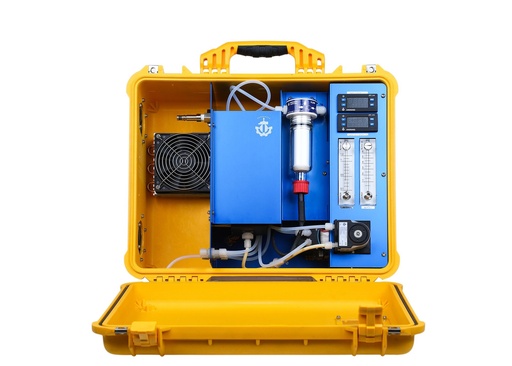

Portable gas conditioning unit with 250 Nl/h cooling capacity, housed in a robust ABS enclosure.
Includes:
- APC series Peltier cooler, electronically regulated to maintain 4 °C, equipped with one heat exchanger. All gas-wetted parts are made of PTFE/PFA®.
- AMP96E diaphragm sample pump, with PTFE-coated membrane, Ryton pump head, and FFPM/Kalrez® valves.
- ACP001 condensate pump, constructed from Novoprene® and PVDF.
- AUF102 universal filter, with Duran® glass body and PVDF filter head/holder. Supplied with AUF 001 filter element made of PTFE (2 µm porosity, 75 mm length).
- APS900 pre-filter, designed to protect the peristaltic pump.
- Sample gas connections via bulkhead union for 4/6 mm tubing: inlet in SS316, outlet in PVDF. Internal tubing in PTFE.
- 230 VAC power cable included.

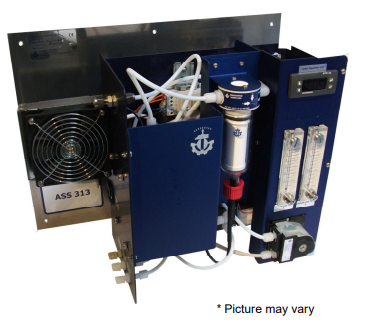

1x 250Nl/h cooling capacity on an aluminium mounting plate.
Consisting of:
- Peltier cooler series APC, electronically controlled at 4°C, with 1 heat exchanger, material of gas wetted parts: PTFE/PFA®
- Diaphragm sample pump type AMP 96E, materials: PTFE-coated (membrane), Ryton (head), FFPM/Kalrez® (valves)
- Condensate pump type ACP 001, materials: Novoprene®, PVDF
- Universal filter type AUF 102, materials: Duran® glass (body), PVDF (filter head, filter element holder),
incl. filter element type AUF 001, material: PTFE, porosity: 2µm, length: 75mm
- Pre-filter type APS 900, to protect the peristaltic pump
- Sample gas connection: Bulkhead union DN 4/6mm, inlet: SS316, outlet: PVDF. Internal tubing: PTFE.
- power supply cable. Power: 230VAC

----
